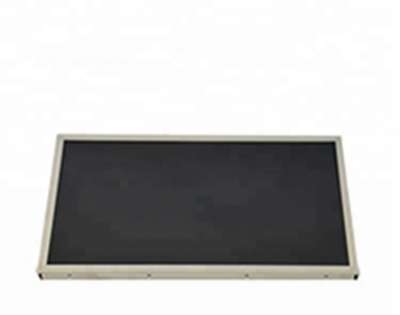

Model : | PC101IA-05G |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 10.1inch 1280*800 TFT LCD 500nits , 40pins LVDS , IPS, wide view |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 10.1" |
Resolution : | 1280×800 |
Aspect Ratio : | 16:10 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 216.96 (W) × 135.6 (H) mm |
Outline Dimension : | 229.46 (W) × 149.1 (H) mm |
Max. Depth : | 2.5mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 500nits |
Viewing Angle : | 85/85/85/85 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | LVDS |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30 ~ 80 °C |
