Model : | ZW-T101BYIA-09CP |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 10.1-inch 800 * 1280 TFT LCD module 500nits, 39pins MIPI, IPS full angle vertical screen with capacitive touch |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Capacitive Touch LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 10.1" |
Resolution : | 800×1280 |
TFT Controller | ILI9881C-04T00GA |
CTP Controlle | GT9271 |
Aspect Ratio : | 10:16 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 135.36 (W) × 216.58 (H) mm |

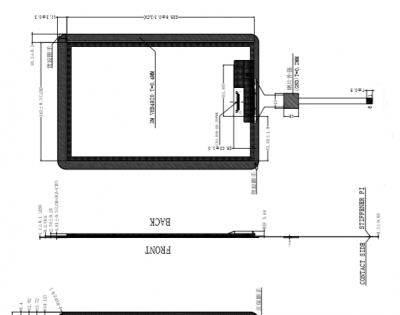

Outline Dimension : | 163.6 (W) × 245.5 (H) mm |
Max. Depth : | 4.81mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 500nits |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | 8S4P-LEDs (white) |
Display Colors : | 16.7M |
Interface： | MIPI |
Interface Pins : | 39Pins |
Touch Panel : | PCAP |
Operating Temp. : | -20 ~ 60 °C |
Storage Temp. : | -30 ~ 80 °C |
