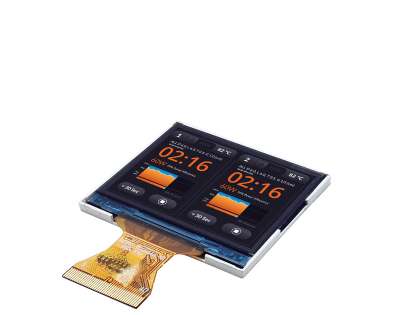

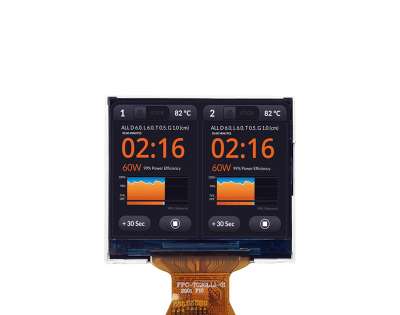

Model : | XH-T013BQS-01 |
Brand : | Xuhong |
Keywords Desc. | 1.3inch, 240*240, 350nits, 24pins, 4 lane SPI/8 bit MCU, ST77911, ALL Viewing Direction, -20~+70°C |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Square LCD, IPS LCD |
Application : | Handheld & PDA |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 1.3" |
Resolution : | 240×240 |
Aspect Ratio : | 1:1 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 23.4 (W) × 23.4 (H) mm (A.A) |
Outline Dimension : | 26.16 (W) × 29.22 (H) mm |
Max. Depth : | 1.5 mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 350nits |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction : | Symmetry |
Display Colors : | 262K |
Backlight Type : | WLED |
Interface Type : | CPU/SPI |
Interface Pins : | 24 Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30 ~ 80 °C |
