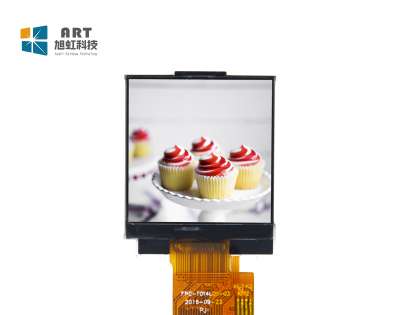

Model : | XH-T014LDS-02 |
Brand : | Xuhong |
Keywords Desc. | 1.4inch, 128*128, 150nits, ST7735, 20pins, High temperature |
Product Class : | Graphic Display |
Product Tags : | Wide Temperature LCD, Square LCD |
Application : | Industrial, Square Display |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 1.4" |
Resolution : | 128×128 |
Aspect Ratio : | 1:1 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 25.25 (W) × 25.25 (H) mm (A.A) |
Outline Dimension : | 30.9 (W) × 36.5 (H) mm |
Max. Depth : | 2.5 mm |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 150nits |
Viewing Angle : | 55/55/55/45 (L/R/U/D) |
Viewing Direction : | 12 o'clock |
Display Colors : | 262K |
Backlight Type : | WLED |
Interface Type : | SPI |
Interface Pins : | 20 Pins |
Touch Panel : | Without |
Operating Temp. : | -30 ~ 85 °C |
Storage Temp. : | -30 ~ 85 °C |
