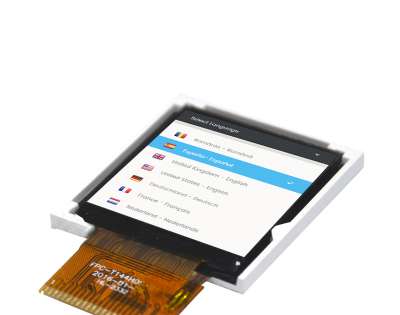

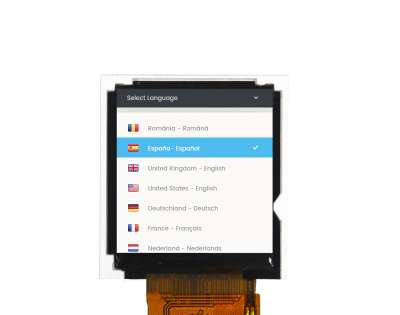

Model : | XH-T015HKSA-01 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 1.5inch 240*240, 600nits, 30pins CPU I/F, ST7789H2 |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Square LCD, IPS LCD |
Application : | Handheld & PDA, Square Display |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 1.5" |
Resolution : | 240×240 |
Aspect Ratio : | 1:1 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 27.72 (W) × 27.72 (H) mm (A.A) |
Outline Dimension : | 31.5 (W) × 35 (H) mm |
Max. Depth : | 2.7 mm |
Controller | ST7789H2 |
Power Supply Voltage | 2.8 V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 600nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction : | Symmetry |
Display Colors : | 262K |
Backlight Type : | 4 LEDs (white) |
Interface Type : | 8080(8bit, 16bit) |
Interface Pins : | 20 Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~70°C |
Storage Temp. : | -30 ~ 80 °C |
