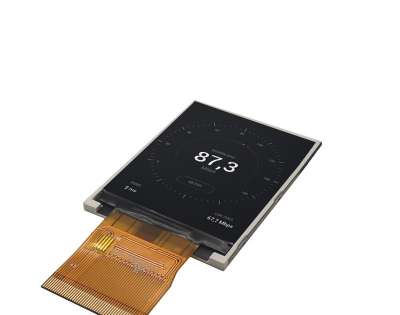

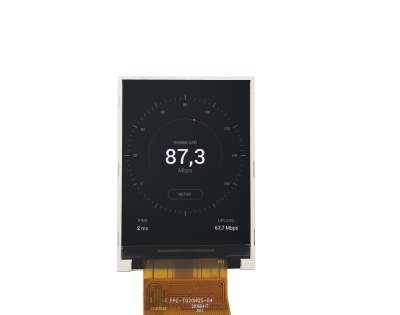

Model : | XH-T020HQS-04 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 2.0nch 240x320 , 250nits, 45pins MCU/RGB/SPI , ST7789V, Wide temperature, wide viewing angle |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 2.0" |
Resolution : | 240×320 |
Aspect Ratio : | 3:4 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 30.6 (W) × 40.8 (H) mm (A.A) |
Outline Dimension : | 36.1 (W) × 51.2 (H) mm |
Max. Depth : | 2.35 mm |
Controller | ST7789V |
Power Supply Voltage | 2.8 V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 250nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction : | Symmetry |
Display Colors : | 262K |
Backlight Type : | 3LEDs (white) |
Interface Type : | MCU/RGB/SPI |
Interface Pins : | 45Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~70°C |
Storage Temp. : | -30 ~ 80 °C |
