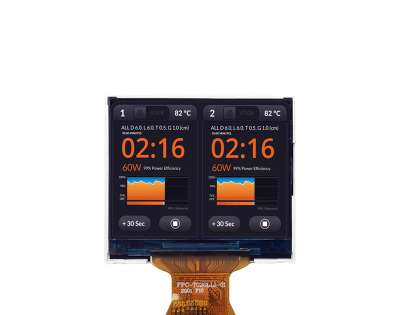

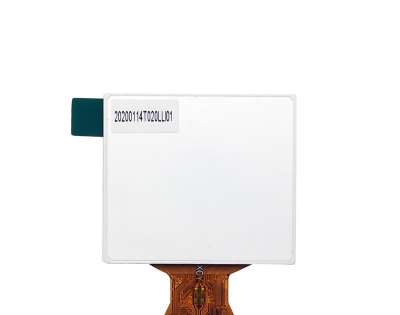

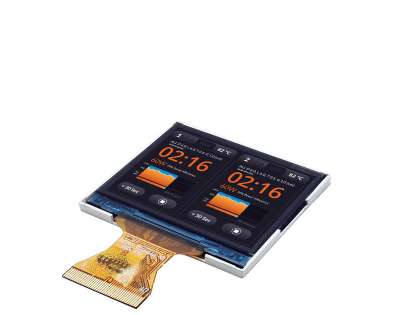

Model : | XH-T020LLI-01 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 2.0nch 320×240 150nits 40pins 6bit RGB I/F ILI9342C IPS LCD MODULE |
Product Class : | Graphic Display |
Product Tags : | 2.0nch 320×240 150nits 40pins 6bit RGB I/F ILI9342C IPS LCD MODULE |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 2.0" |
Resolution : | 320×240 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 40.8 (W) × 30.6 (H) mm (A.A) |
Outline Dimension : | 46.1 (W) × 40.96 (H) mm |
Max. Depth : | 2.4 mm |
Controller | ILI9342C |
Power Supply Voltage | 2.8 V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 150nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction : | Symmetry |
Display Colors : | 16.7M |
Backlight Type : | LEDs |
Interface Type : | MCU |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~70°C |
Storage Temp. : | -30 ~ 80 °C |
