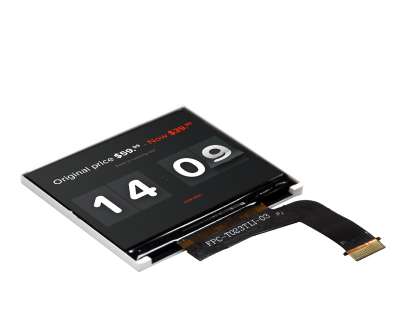

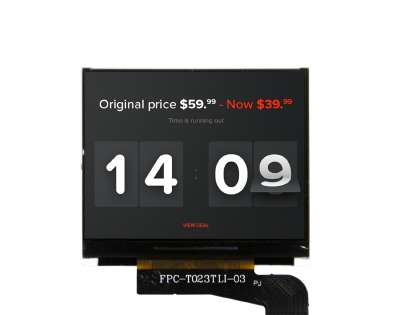

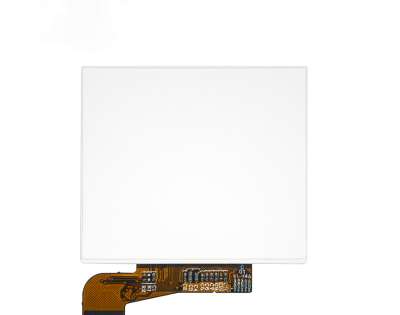

Model : | XH-T023TLI-03 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 2.3inch 320*240, 290nits, ILI9342, 31pins MCU-8BIT, TN LCD MODULE |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 2.3" |
Resolution : | 320×240 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 46.75 (W) × 35.06 (H) mm (A.A) |
Outline Dimension : | 50.6 (W) × 44.3 (H) mm |
Max. Depth : | 2.3 mm |
Controller | ILI9342C |
Power Supply Voltage | 2.8 V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 290nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 65/65/65/50 (L/R/U/D) |
Viewing Direction | 6 O’Clock |
Grey scale inversion | 12 O’Clock |
Display Colors : | 16.7M |
Backlight | 4-LEDs (white) |
Interface Type : | MCU-8BIT |
Interface Pins : | 31Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~70°C |
Storage Temp. : | -30 ~ 80 °C |
