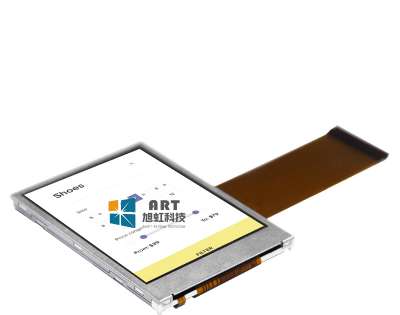

Model : | XH-T024SQI-01 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 2.4inch, 240*320, 750nits, ILI9341V, 40pins, High Brightness |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD |
Application : | Outdoor High Brightness |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 2.4" |
Resolution : | 240*320 |
Aspect Ratio : | 3:4 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 36.72 (W) × 48.96 (H) mm (A.A) |
Outline Dimension : | 42.72 (W) × 59 (H) mm |
Max. Depth : | 2.3mm |
Controller | ILI9341V |
Power Supply Voltage | 2.7V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 750nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 60/60/60/45 (L/R/U/D) |
Viewing Direction | 6 O’Clock |
Grey scale inversion | 12 O’Clock |
Display Colors : | 262K |
Backlight | 6-LEDs (white) |
Interface Type : | RGB--18bit |
Interface Pins : | 35Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~70°C |
Storage Temp. : | -30 ~ 80 °C |
