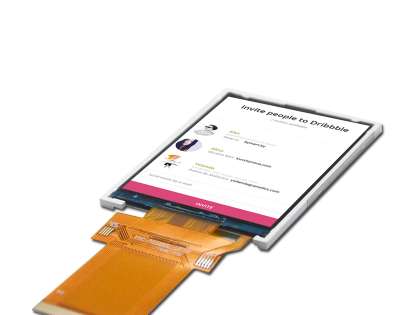

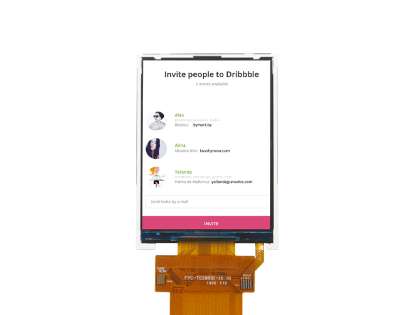

Model : | XH-T028BQI-16 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 2.8inch, 240×320 , 500nits, 50pins, MCU/RGB/SPI, ILI9341V, IPS LCD Module |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 2.8" |
Resolution : | 240*320 |
Aspect Ratio : | 3:4 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 43.2 (W) × 57.6 (H) mm (A.A) |
Outline Dimension : | 50 (W) × 69.2 (H) mm |
Max. Depth : | 2.35 mm |
Controller | ILI9341V |
Power Supply Voltage | 2.8V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | 6 O’Clock |
Grey scale inversion | 12 O’Clock |
Display Colors : | 262K |
Backlight | 4-LEDs (white) |
Interface Type : | MCU/RGB/SPI |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -30 ~80°C |
Storage Temp. : | -30 ~ 80 °C |
