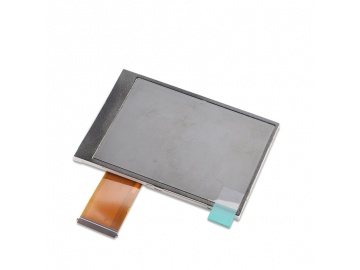

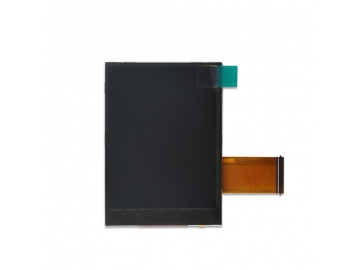

Model : | XH-T028BQI-21 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 2.8inch 240*320, TFT LCD Module , 450nits, ILI9341V , 45pins MCU |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Handheld & PDA |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 2.8" |
Resolution : | 240*320 |
Aspect Ratio : | 3:4 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 43.2 (W) × 57.6 (H) mm (A.A) |
Outline Dimension : | 50 (W) × 69.2 (H) mm |
Max. Depth : | 2.7 mm |
Controller | ILI9341V |
Power Supply Voltage | 2.8V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 800nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Grey scale inversion | FREE |
Display Colors : | 65K |
Backlight | 4-LEDs (white) |
Interface Type : | MCU16Bit |
Interface Pins : | 45Pins |
Touch Panel : | Without |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
