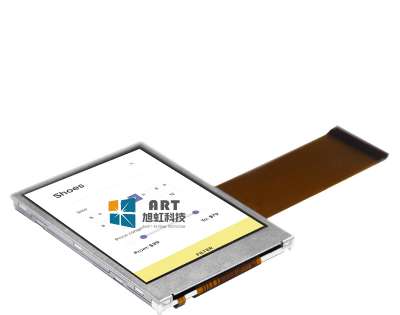

Model : | XH-T032HQI-09 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.2inch, 240*320, 300nits, ILI9341V , 50pins, RGB/MU, TN LCD MODULE, High temperature |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Handheld & PDA, Industrial, MP3 PMP |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.2" |
Resolution : | 240*320 |
Aspect Ratio : | 3:4 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 48.6 (W) × 64.8 (H) mm (A.A) |
Outline Dimension : | 53.6 (W) × 76 (H) mm |
Max. Depth : | 2.35 mm |
Controller | ILI9341V |
Power Supply Voltage | 2.8V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 300nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 65/65/65/55 (L/R/U/D) |
Viewing Direction | 6 O’Clock |
Grey scale inversion | 12 O’Clock |
Display Colors : | 262K |
Backlight | 6-LEDs (white) |
Interface Type : | RGB/MCU |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
