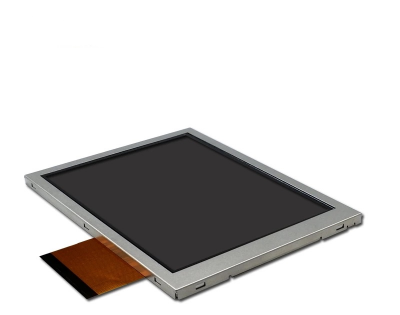

Model : | ZW-T035SGV-01 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.5-inch, 640 * 480, 500nits, wide viewing angle, 3SPI+RGB24bit, NV3052C, 40pins, IPS LCD module, -20~+70 ℃ |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Handheld & PDA, Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.5" |
Resolution : | 640×480 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |

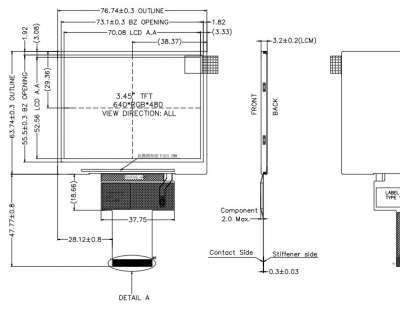

Active Area : | 70.08 (W) × 52.56 (H) mm (A.A) |
Outline Dimension : | 76.74 (W) × 63.74 (H) mm |
Max. Depth : | 3.2 mm |
Controller | NV3052C |
Power Supply Voltage | 2.8V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | ALL |
Grey scale inversion | ALL |
Display Colors : | 262K |
Backlight | 6S-LEDs (white) |
Interface Type : | 3SPI+RGB24bit |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
