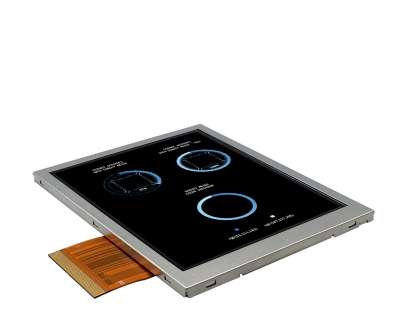

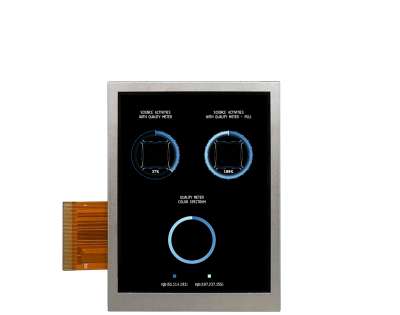

Model : | XH-T035GQITR-01 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.5inch 240*320, 100nits, 50pins, , RGB-18Bit+ SPI, ILI9341V |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Handheld & PDA |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.5" |
Resolution : | 240×320 |
Aspect Ratio : | 3:4 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 53.64 (W) × 71.52 (H) mm (A.A) |
Outline Dimension : | 64 (W) × 85 (H) mm |
Max. Depth : | 2.93 mm |
Controller | ILI9341V |
Power Supply Voltage | 2.8V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 100nits |
Contrast Ratio : | 150:1 (Typ.) |
Viewing Angle : | 50/45/40/35 (L/R/U/D) |
Viewing Direction | 6 O’Clock |
Grey scale inversion | 12 O’Clock |
Display Colors : | 262K |
Backlight | 6S-LEDs (white) |
Interface Type : | RGB-18Bit+ SPI |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
