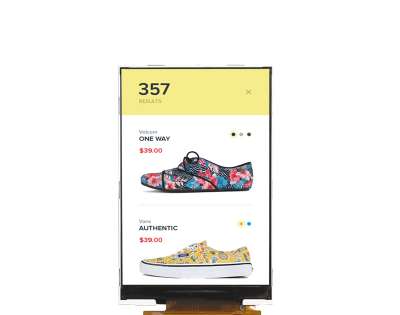

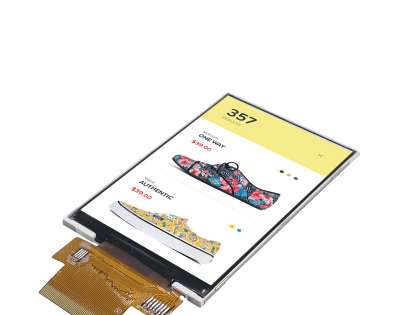

Model : | XH-T035SHI-16 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.5inch 320*480, 280nits, 50pins RGB/MCU, ILI9488, Wide temperature, highlight |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.5" |
Resolution : | 320×480 |
Aspect Ratio : | 2:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 48.96 (W) × 73.44 (H) mm (A.A) |
Outline Dimension : | 54.48 (W) × 84.71 (H) mm |
Max. Depth : | 2.35 mm |
Controller | ILI9488 |
Power Supply Voltage | 2.8V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 280nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 65/65/65/55 (L/R/U/D) |
Viewing Direction | 6 O’Clock |
Grey scale inversion | 12 O’Clock |
Display Colors : | 262K |
Backlight | 6S-LEDs (white) |
Interface Type : | RGB/MCU |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
