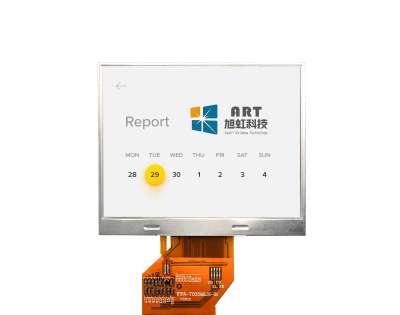

Model : | XH-T035MLH-26 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.5 inch, 320*240, 900nits, 54pins, TTL, HX8238D, High Brightness LCD MODULE |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD |
Application : | Outdoor High Brightness |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.5" |
Resolution : | 320×240 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 70.08 (W) × 52.56 (H) mm (A.A) |
Outline Dimension : | 76.8 (W) × 63.9 (H) mm |
Max. Depth : | 3.15 mm |
Controller | HX8238D |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 900nits |
Contrast Ratio : | 300:1 (Typ.) |
Viewing Angle : | 65/65/55/65 (L/R/U/D) |
Viewing Direction | 6 O’Clock |
Grey scale inversion | 12 O’Clock |
Display Colors : | 16.7M |
Backlight | 6S-LEDs (white) |
Interface Type : | RGB888 |
Interface Pins : | 54Pins |
Touch Panel : | Without |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
