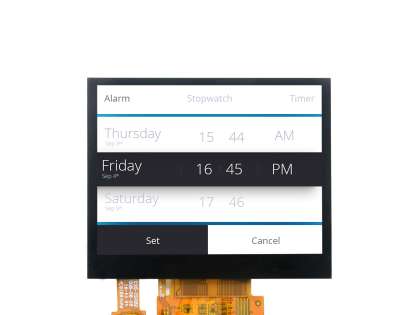

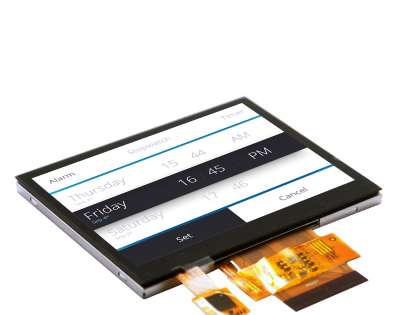

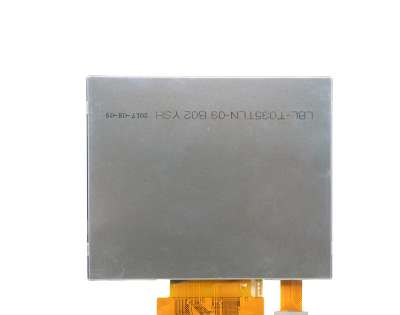

Model : | XH-T035TLV-18CP |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.5inch 320*240 TFT display with CTP 500nits, 45pins RGB, NV3035, -20~+70°C |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Capacitive Touch LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.5" |
Resolution : | 320×240 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 70.08 (W) × 52.56 (H) mm (A.A) |
Outline Dimension : | 76.9 (W) × 64 (H) mm |
Max. Depth : | 4.8 mm |
Controller | NV3035 |
CTP Driver | FT5346 |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 65/65/65/55 (L/R/U/D) |
Viewing Direction | 6 O’Clock |
Grey scale inversion | 12 O’Clock |
Display Colors : | 16.7K |
Backlight | 6S-LEDs (white) |
Interface Type : | RGB |
Interface Pins : | 45Pins |
Touch Panel : | PCAP |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
