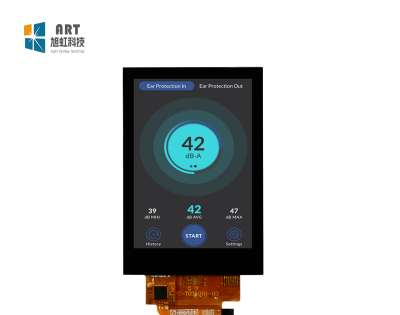

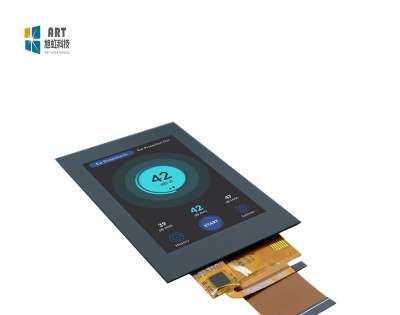

Model : | XH-T035MLH-03P |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.5inch 320*240 TFT LCD Module with RTP touch, 250nits, HX8238D, 54pins TTL |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Resistive Touch LCD |
Application : | Handheld & PDA |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.5" |
Resolution : | 320×240 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 70.08 (W) × 52.56 (H) mm (A.A) |
Outline Dimension : | 76.9 (W) × 64 (H) mm |
Max. Depth : | 4.23 mm |
Controller | HX8238D |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 60/60/60/45 (L/R/U/D) |
Viewing Direction | 12 O’Clock |
Grey scale inversion | 6 O’Clock |
Display Colors : | 16.7M |
Backlight | 6-LEDs (white) |
Interface Type : | RGB-8/24Bit |
Interface Pins : | 54Pins |
Touch Panel : | 4-wire Resistive Touch |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
