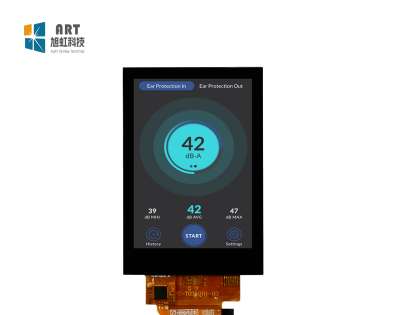

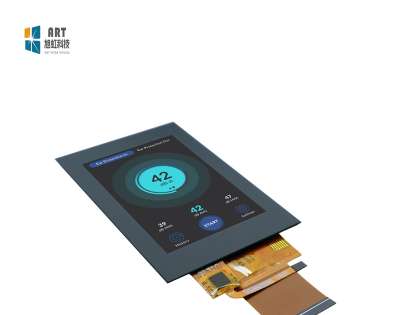

Model : | XH-T035QHI-03CP |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.5, 320x480, 300nits, 50pins, MCU/RGB I/F, ILI9488, TOUCH |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Handheld & PDA |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.5" |
Resolution : | 320×480 |
Aspect Ratio : | 2:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 48.96 (W) × 73.44 (H) mm (A.A) |
Outline Dimension : | 65.61 (W) × 97.41 (H) mm |
Max. Depth : | 3.75 mm |
Controller | ILI9488 |
CTP Controller | GT911 |
Power Supply Voltage | 2.8V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 300nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | ALL |
Display Colors : | 16.7M |
Backlight | 6P-LEDs (white) |
Interface Type : | MCU/RGB |
Interface Pins : | 50Pins |
Touch Panel : | On-Cell Touch |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
