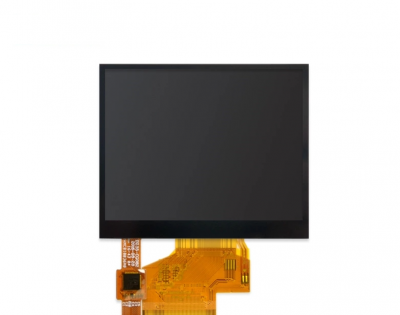

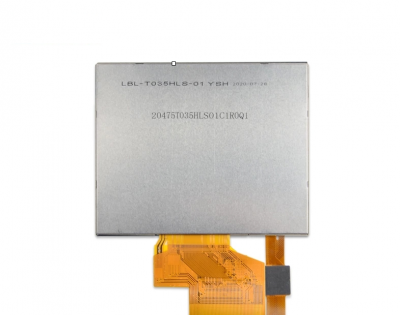

Model : | XH-T035HLS-06 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.5-inch 320 * 240 TFT LCD module with 300nits, IPS full angle viewing angle -30~+80 ℃ wide temperature suitable for car mounted rearview |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.5" |
Resolution : | 320×240 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 70.08 (W) × 52.56 (H) mm (A.A) |
Outline Dimension : | 76.8 (W) × 63.9 (H) mm |
Max. Depth : | 3.05 mm |
Controller | ST7272A |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 300nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 85/85/85/85 (L/R/U/D) |
Viewing Direction | ALL |
Display Colors : | 16.7M |
Backlight | 6S-LEDs (white) |
Interface Type : | RGB |
Interface Pins : | 54Pins |
Touch Panel : | Without |
Operating Temp. : | -30~+80°C |
Storage Temp. : | -30~+80°C |
