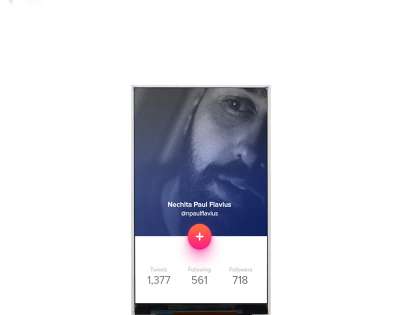

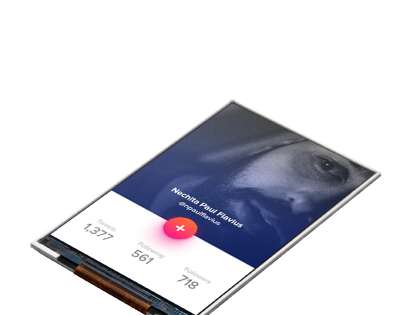

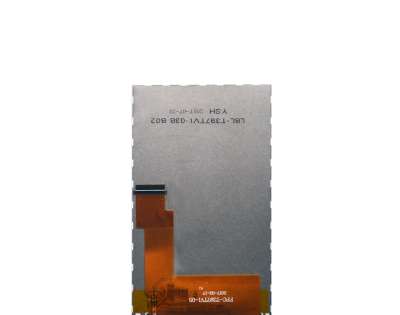

Model : | XH-T397TVI-03 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.97inch 480*800 IPS LCD MODULE, 280nits, 39pins 18bit RGB+SPI |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 4" |
Resolution : | 480×800 |
Aspect Ratio : | 3:5 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 51.84 (W) × 86.4 (H) mm (A.A) |
Outline Dimension : | 57.14 (W) × 96.85 (H) mm |
Max. Depth : | 1.8 mm |
Controller | ILI9806E |
Power Supply Voltage | 2.8V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 280nits |
Contrast Ratio : | 700:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 262K |
Backlight | LEDs (white) |
Interface Type : | SPI/RGB |
Interface Pins : | 39Pins |
Touch Panel : | Without |
Operating Temp. : | -10 ~ 60 °C |
Storage Temp. : | -20~+70°C |
