Model : | ZW-T039QPS-03 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 3.9-inch assembled screen 480 * 128 TFT LCD module 650nits, 40pins RGB ultra high brightness wide temperature LCD screen |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Bar LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 3.9" |
Resolution : | 480×128 |
Aspect Ratio : | >3:1 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 95.04 (W) × 25.344 (H) mm (A.A) |

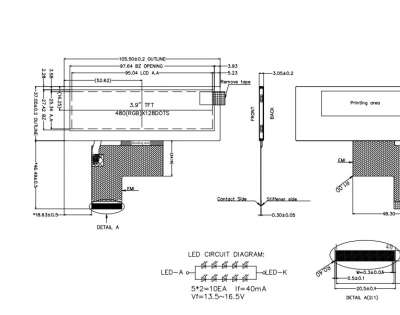

Outline Dimension : | 105.5 (W) × 37 (H) mm |
Max. Depth : | 3.05 mm |
Controller | ST7282 |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 650nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 65/50/65/65 (L/R/U/D) |
Viewing Direction | 12 O’Clock |
Grey scale inversion direction | 6 O’Clock |
Display Colors : | 16.7M |
Backlight | 5S2P-LEDs (white) |
Interface Type : | RGB888 |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+80°C |
