Model : | LCM-T040HCSA-02 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 4.0 inches, 480x480, 400nits, SPI+RGB-18bit, 40pins, Full viewing angle, -20~+70 ℃, ST7701S wide temperature square LCD screen |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Square LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 4" |
Resolution : | 480×480 |
Aspect Ratio : | 1:1 (W:H) |
Form Factor : | Flat Rectangle |

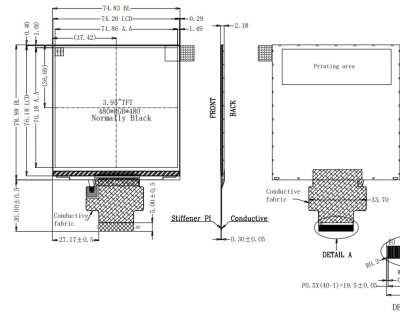

Active Area : | 70.86 (W) × 70.18 (H) mm (A.A) |
Outline Dimension : | 74.83 (W) × 78.98 (H) mm |
Max. Depth : | 2.18 mm |
Controller | ST7701S |
Power Supply Voltage | 2.8V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 400nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 262K |
Backlight | 4S2P-LEDs (white) |
Interface Type : | SPI+RGB-18bit |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+80°C |
