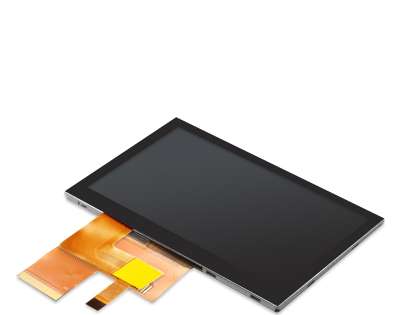

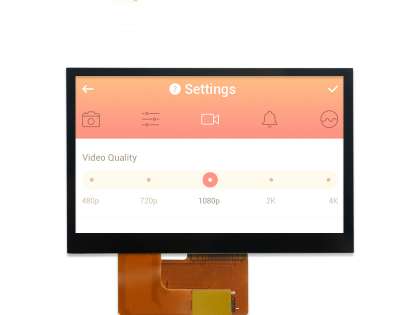

Model : | XH-T043BPSA-01CP |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 4.3 inch 480 * 272 TFT LCD module 400nits, 40pins RGB, wide temperature, wide viewing angle with touch |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Capacitive Touch LCD, IPS LCD |
Application : | Portable Navigation, Video Door Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 4.3" |
Resolution : | 480×272 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 95.04 (W) × 53.86 (H) mm (A.A) |
Outline Dimension : | 105.5 (W) × 67.2 (H) mm |
Max. Depth : | 4.7mm |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 400nits |
Contrast Ratio : | 1200:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 16.7M |
Backlight | WLED |
Interface Type : | TTL |
Interface Pins : | 40Pins |
Touch Panel : | PCAP |
Operating Temp. : | -30 ~ 80 °C |
Storage Temp. : | -30~+80°C |
