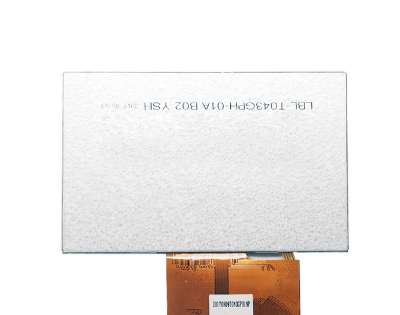

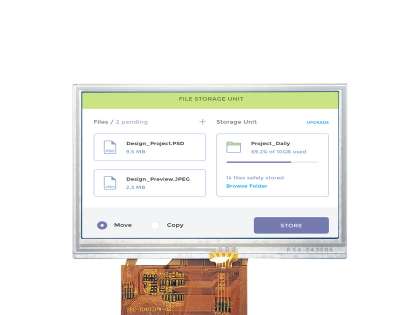

Model : | XH-T043BPSA-01 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 4.3inch, 480*272, 500nits, 40pins, TTL, ST7283-G4, ALL Viewing Direction, -20~+70 °C |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 4.3" |
Resolution : | 480×272 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 95.04 (W) × 53.86 (H) mm (A.A) |
Outline Dimension : | 105.5 (W) × 67.2 (H) mm |
Max. Depth : | 2.95 mm |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 16.7M |
Backlight | WLED |
Interface Type : | TTL |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+85°C |
