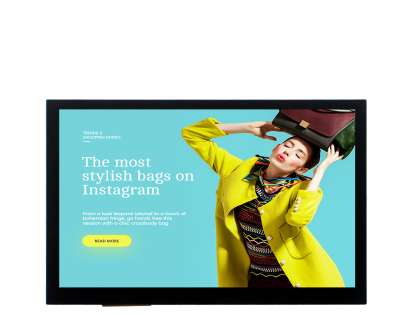

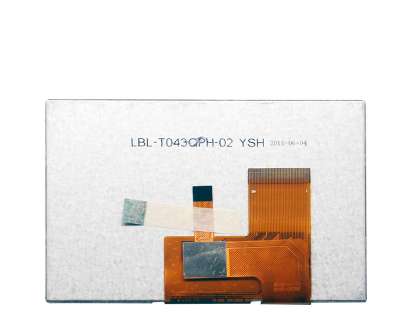

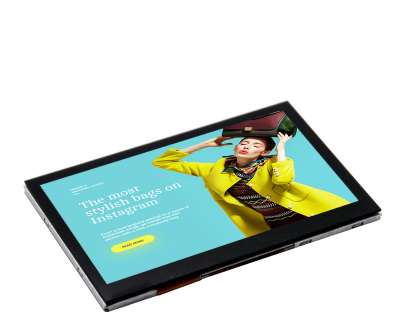

Model : | XH-T043QPS-01CP |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 4.3 ", 480*272, 420nits, 40pins, TTL interface, ST7282, IPS LCD module, with capacitive touch screen |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Capacitive Touch LCD |
Application : | Video Door Phone, VOIP Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 4.3" |
Resolution : | 480×272 |
Controller | ST7282 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 95.04 (W) × 53.86 (H) mm (A.A) |
Outline Dimension : | 105.5 (W) × 67.2 (H) mm |
Max. Depth : | 4.75mm |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 65/65/65/55 (L/R/U/D) |
Viewing Direction | 12 o'clock |
Display Colors : | 16.7M |
Backlight | 5*2-LEDs (white) |
Interface Type : | RGB888 |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+80°C |
CTP parameter
Item | Contents |
Outline Size | 105.50(H)X67.20(V)X4.75(T)mm |
Cover View Area | 95.04(H)X53.86(V)mm |
CTP Resolution | 480x272 |
Interface Mode | IIC |
Touch Mode | 5 Human fingers multi-touch |
Controller | FT5216 |
IIC Address | 0x70 |
Optical Characteristics | Transparency>=86% |
Surface Hadness | >6H |
