Model : | ZW-T043BVS08 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 4.3-inch, 480x800, 450nits, RGB, 45pins, full view angle, -20~+70 ℃, ST7701S wide temperature vertical screen |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Handheld & PDA, Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 4.3" |
Resolution : | 480×800 |
Aspect Ratio : | 3:5 (W:H) |
Form Factor : | Flat Rectangle |

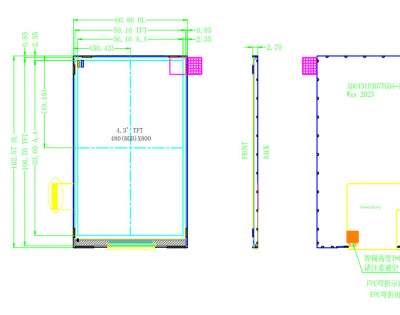

Active Area : | 56.16 (W) × 93.6 (H) mm (A.A) |
Outline Dimension : | 60.86 (W) × 102.57 (H) mm |
Max. Depth : | 2.7 mm |
Controller | ST7701S |
Power Supply Voltage | 2.8V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 450nits |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 16.7M |
Backlight | WLED |
Interface Type : | RGB |
Interface Pins : | 45Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+80°C |
