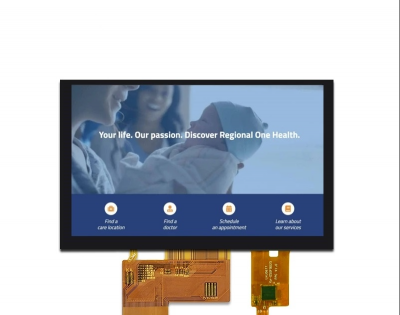

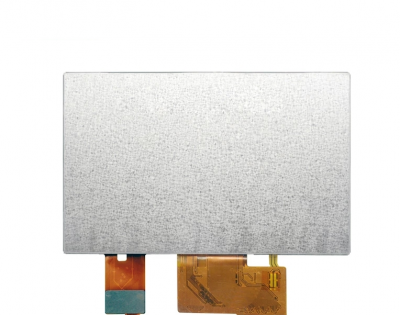

Model : | ZW-T050GGSA-03 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 5.0 inch 640 * 480 TFT LCD module with 800nits, 50pins RGB, high brightness outdoor visual wide-angle ultra wide temperature industrial LCD screen for car mounted display |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD |
Application : | Industrial, Outdoor High Brightness |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 5.0" |
Resolution : | 640×480 |
Controller | ST5892B |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 101.76 (W) × 76.32 (H) mm (A.A) |
Outline Dimension : | 118.65 (W) × 89.43 (H) mm |
Max. Depth : | 5.87 mm |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 800nits |
Contrast Ratio : | 1000:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 262K |
Backlight | 3S6P-LEDs (white) |
Interface Type : | RGB666 |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -40 ~ 70 °C |
Storage Temp. : | -40~+85°C |
