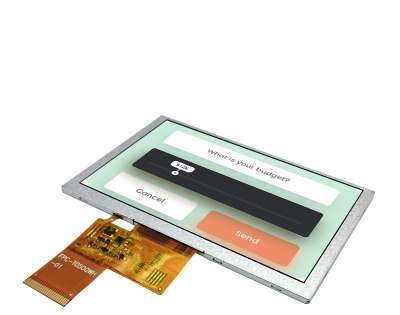

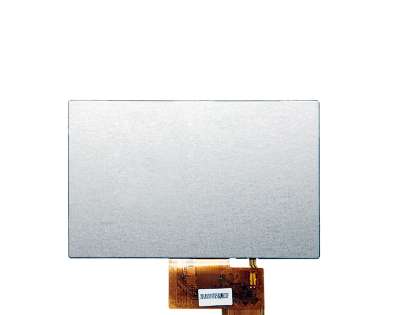

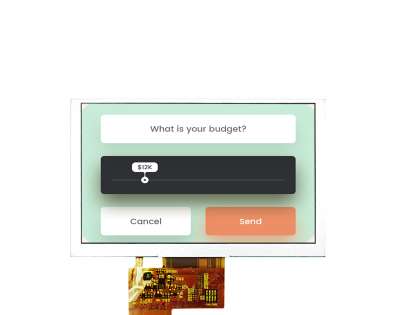

Model : | XH-T050QWH-03 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 5.0inch, 800*480, 500nits, , 40pins, TTL I/F, ILI6122+ILI5960, TN LCD MODULE |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 5.0" |
Resolution : | 800×480 |
Controller | ILI6122+ILI5960 |
Aspect Ratio : | 15:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 108 (W) × 64.8 (H) mm (A.A) |
Outline Dimension : | 120.7 (W) × 75.8 (H) mm |
Max. Depth : | 2.8mm |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 70/70/70/60 (L/R/U/D) |
Viewing Direction | 12 o'clock |
Gray scale inversionDirection | 6 o'clock |
Display Colors : | 16.7M |
Backlight | 18-LEDs (white) |
Interface： | F.P.C 0.5mm |
Data Transfer | RGB888 |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+80°C |
