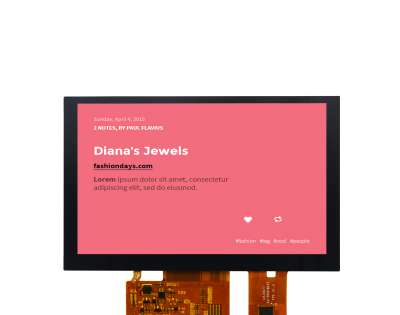

Model : | XH-T050QWH-51CP |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 5.0nch, 800×480 , 420nits, 40pins, RGB888, Controller ILI6122+ILI5960, CTP Driver FT5426, Operating temperature -20~+70°C |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Digital Photo Frame, Video Door Phone, VOIP Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 5.0" |
Resolution : | 800×480 |
Controller | ILI6122+ILI5960 |
Aspect Ratio : | 15:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 108 (W) × 64.8 (H) mm (A.A) |
Outline Dimension : | 120.7 (W) × 76.3 (H) mm |
Max. Depth : | 5.28mm |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 420:1 (Typ.) |
Viewing Angle : | 65/65/65/55 (L/R/U/D) |
Viewing Direction | 12 o'clock |
Gray scale inversionDirection | 6 o'clock |
Display Colors : | 16.7M |
Backlight | 6S3P-LEDs (white) |
Interface： | RGB888 |
Interface Pins : | 40Pins |
Touch Panel : | On-Cell Touch |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+80°C |
