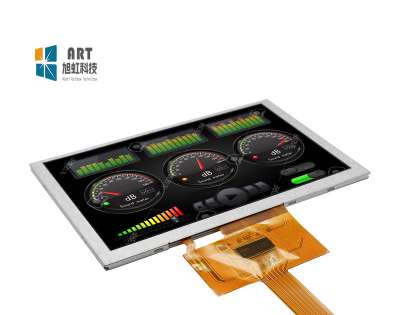

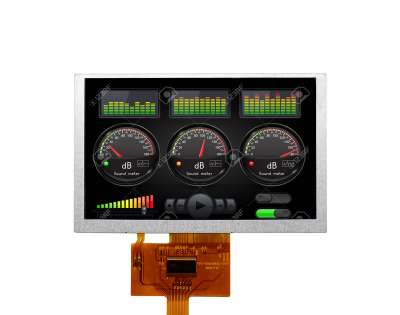

Model : | XH-T050HWSA-02CP |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 5inch with RTP , 800*480, 350nits, TTL I/F, ST7262 |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Resistive Touch LCD, IPS LCD |
Application : | Video Door Phone, VOIP Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 5.0" |
Resolution : | 800×480 |
Controller | ST7262 |
CTP Controller | FT5426 |
Aspect Ratio : | 15:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 108 (W) × 64.8 (H) mm (A.A) |
Outline Dimension : | 120.7 (W) × 76.3 (H) mm |
Max. Depth : | 5.025 mm |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 350nits |
Contrast Ratio : | 1000:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | ALL |
Display Colors : | 16.7M |
Backlight | 6S3P-LEDs (white) |
Interface： | RGB888 |
Interface Pins : | 40Pins |
Touch Panel : | .With CTP |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+80°C |
