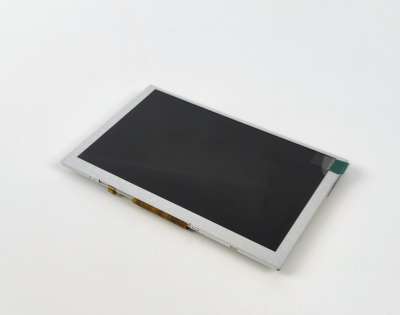

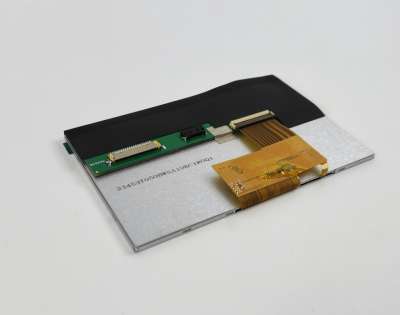

Model : | XH-T050BWSA-19B |
LCD Type | TFT |
Brand : | Xuhong |

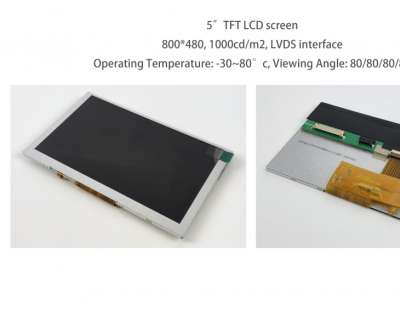

Keywords Desc. | 5.0 inch 800 * 480 TFT LCD module with 1000 brightness and wide temperature LVDS, 20 pins, -30~+80 ℃ IPS, high brightness and wide temperature industrial LCD screen |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 5.0" |
Resolution : | 800×480 |
Controller | ST7262-02 |
Aspect Ratio : | 15:9(W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 108 (W) × 64.8 (H) mm (A.A) |
Outline Dimension : | 120.7 (W) × 75.8 (H) mm |
Max. Depth : | 6.75 mm |
Power Supply Voltage | 2.8V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 1000nits |
Contrast Ratio : | 1500:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | ALL |
Display Colors : | 16.7M |
Backlight | 10S2P-LEDs (white) |
Interface： | RGB888 |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -30 ~+80 °C |
Storage Temp. : | -30~+80°C |
