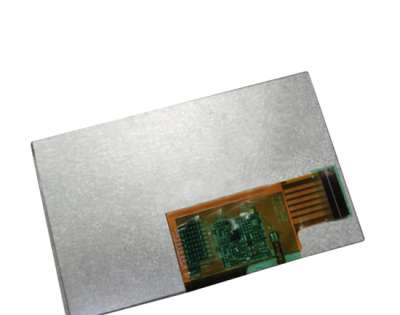

Model : | PC050IA45-FZ |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 5.0inch 800*480 TFTLCD 500nits , 40pins TTL Support flipping |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 5.0" |
Resolution : | 800×480 |
Aspect Ratio : | 15:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 108 (W) × 64.8 (H) mm (A.A) |
Outline Dimension : | 120.7 (W) × 75.8 (H) mm |
Max. Depth : | 2.8 mm |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 1000:1 (Typ.) |
Viewing Angle : | 89/89/89/89 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 16.7M |
Backlight | 12pcs White LED(6 serial & 2 parallel) |
Interface： | 24-bit parallel RGB |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Weight | 48.5±0.5g |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+80°C |
