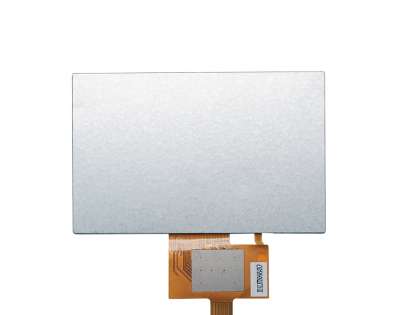

Model : | XH-T050QWH-34P |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 5.0inch 800*480 TFT LCD Module with RTP touch, 800nits, ILI6122+ILI5960, 40pins TTL, High Brightness |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Resistive Touch LCD, Sunlight Readable LCD |
Application : | Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 5.0" |
Resolution : | 800×480 |
Aspect Ratio : | 15:9 (W:H) |
Controller | ILI6122/ ILI5960 |
Form Factor : | Flat Rectangle |
Active Area : | 108 (W) × 64.8 (H) mm (A.A) |
Outline Dimension : | 120.7 (W) × 75.8 (H) mm |
Max. Depth : | 4.05 mm |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 800nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 65/55/65/65 (L/R/U/D) |
Viewing Direction | 12 O’Clock |
Gray scale inversion direction | 6 O’Clock |
Display Colors : | 16.7M |
Backlight | 2X10-LEDs (white) |
Interface： | RGB888 |
Interface Pins : | 40Pins |
Touch Panel : | 4-wire Resistive Touch |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30~+80°C |
