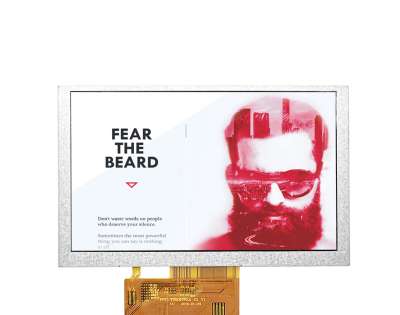

Model : | XH-T050HWSA-06 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 5.0nch, 800×480 , 1000nits, 40pins, TTL, ST7262, Wide temperature, wide viewing angle, and readable in bright sunlight |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD |
Application : | Outdoor High Brightness |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 5.0" |
Resolution : | 800×480 |
Aspect Ratio : | 15:9 (W:H) |
Controller | ST7262 |
Form Factor : | Flat Rectangle |
Active Area : | 108 (W) × 64.8 (H) mm (A.A) |
Outline Dimension : | 120.7 (W) × 75.8 (H) mm |
Max. Depth : | 2.85 mm |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 1000nits |
Contrast Ratio : | 1000:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 16.7M |
Backlight | 10X2-LEDs (white) |
Interface： | RGB |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -30 ~+ 80 °C |
Storage Temp. : | -30~+80°C |
