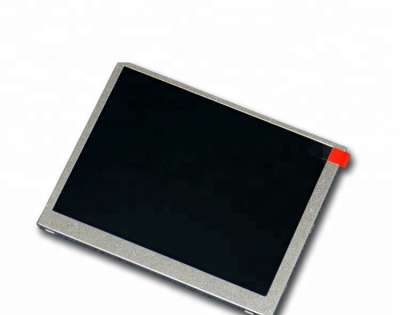

Model : | DS-T565BGEA-03 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 5.6 inch assembled screen 640 * 480TFT LCD module 350nits, 40pins RGB, compatible with alternative AT056TN53 V.1 |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Digital Photo Frame, Industrial, Video Door Phone, VOIP Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 5.6" |
Resolution : | 640×480 |
Aspect Ratio : | 4:3 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 115.2 (W) × 86.4 (H) mm |
Outline Dimension : | 126.5 (W) × 100 (H) mm |
Max. Depth : | 6.7 mm |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 350nits |
Contrast Ratio : | 1200:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 16.7M |
Backlight | WLED |
Interface： | TTL |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~+ 70 °C |
Storage Temp. : | -30~+80°C |
