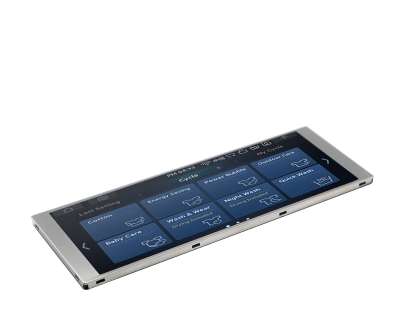

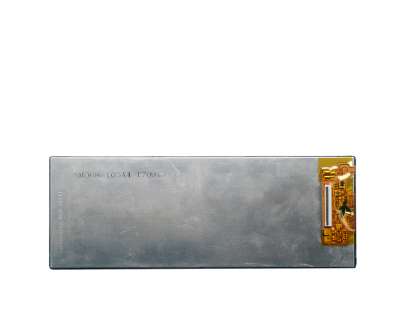

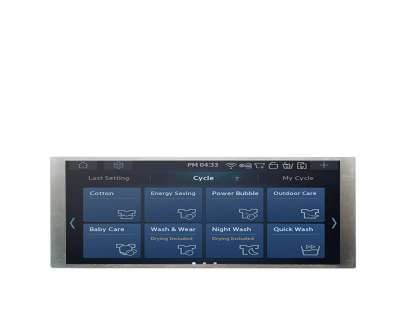

Model : | ZW-T068VZHA-02 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 6.8 inch 480×1280, 450nits, 40pins MIPI, ICN9706, Operating temperature -20~+70°C |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Home Appliance, Industrial, Stretched Bar LCD |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 6.8" |
Resolution : | 480×1280 |
Aspect Ratio : | 3:8 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 60.22 (W) × 160.59 (H) mm |
Outline Dimension : | 66.7 (W) × 181.2 (H) mm |
Max. Depth : | 4.4 mm |
Power Supply Voltage | 3.3V |
Controller | HX8394F |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 450nits |
Contrast Ratio : | 800:1 (Min.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 16.7M |
Backlight | 3S4P-LEDs (white) |
Interface： | MIPI 4 Lane |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~+ 70 °C |
Storage Temp. : | -30~+80°C |
