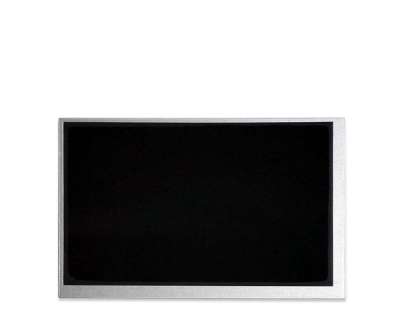

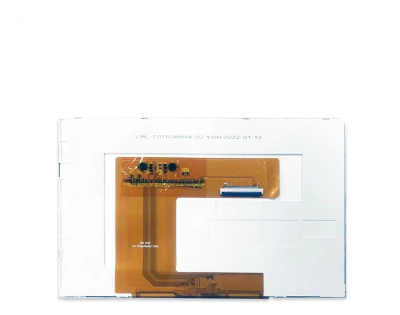

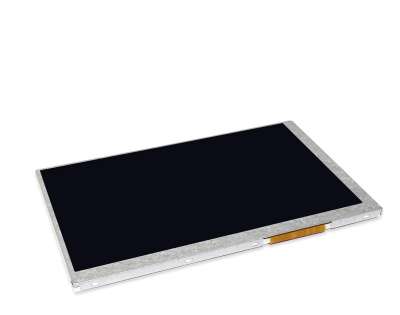

Model : | ZW-T070QWH-26 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 7.0 inches, 800 * 480, 450nits, RGB888, HX8664-B+HX8264-E , 50pins, -30~+85℃ Ultra wide temperature range |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Digital Photo Frame, Portable DVD Player, Video Door Phone, VOIP Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 800×480 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 154.08 (W) × 85.92 (H) mm |
Outline Dimension : | 164.95 (W) × 100 (H) mm |
Max. Depth : | 5.7 mm |
Power Supply Voltage | 3.3V |
Controller | HX8664-B+HX8264-E |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 450nits |
Contrast Ratio : | 500:1 (Min.) |
Viewing Angle : | 65/55/65/65 (L/R/U/D) |
Viewing Direction | 12 O’Clock |
Display Colors : | 16.7M |
Backlight | 3S9P-LEDs (white) |
Interface： | RGB888 |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -30 ~+ 85 °C |
Storage Temp. : | -30~+85°C |
