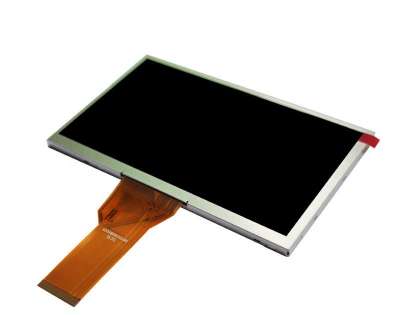

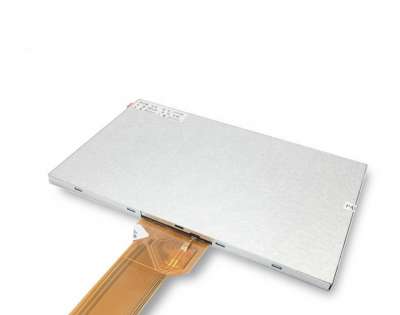

Model : | PC070NE98-C |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 7 inches 800*480, 800nits, RGB, ultra high brightness, readable outdoors in sunlight, Compatible with AT070TN92 AT070TN94 |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD |
Application : | Industrial, Outdoor High Brightness |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 800×480 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 154.08 (W) × 85.92 (H) mm |
Outline Dimension : | 165 (W) × 100 (H) mm |
Max. Depth : | 5.7 mm |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 800nits |
Contrast Ratio : | 500:1 (Min.) |
Viewing Angle : | 70/70/50/70 (L/R/U/D) |
Viewing Direction | 6 O’Clock |
Display Colors : | 16.7M |
Backlight | WLED |
Interface： | RGB |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~+ 70°C |
Storage Temp. : | -30~+80°C |
