LCD Type

TFT

Brand :

Xuhong

Keywords Desc.

7.0-inch 800 * 1280 TFT LCD module with   800nits high brightness outdoor visibility, 41pinsMIPI, wide temperature and   full view angle, built-in IIC interface capacitive touch screen

Product Class :

Graphic Display

Product Tags :

Color TFT-LCD, Wide Temperature   LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD

Application :

Industrial, Outdoor High Brightness

Panel Type :

a-Si TFT-LCD

Panel Composition :

LCM

Panel Size :

7"

Resolution :

800×1280

Aspect Ratio :

10:16 (W:H)

Form Factor :

Flat Rectangle

Active Area :

94.2 (W) × 150.72 (H) mm

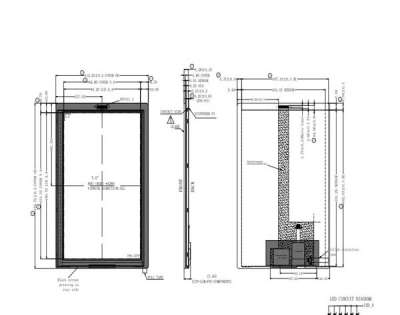

Outline Dimension :

114.2 (W) × 170.72 (H) mm

Max. Depth :

5.28 mm

Power Supply Voltage

3.3V

LC Family :

IPS

Polarizer :

Transmissive

Brightness :

800nits

Contrast Ratio :

1000:1 (Min.)

Viewing Angle :

80/80/80/80 (L/R/U/D)

Viewing Direction

ALL O’Clock

Display Colors :

16.7M

Backlight

WLED

Interface：

MIPI 4lane

Interface Pins :

41Pins

Touch Panel :

On-Cell Touch

Operating Temp. :

-20 ~+ 60°C

Storage Temp. :

-30~+70°C

Outline Size

114.20(H)X170.72(V)X1.80(T)

Cover View Area

95.80(H)X151.32(V)

CTP Resolution

800 X 1280

Interface Mode

IIC

Touch Mode

10 Human fingers multi-touch

Surface hardness

>=6H

Transparency

>=85%

Accuracy

Entre +/-1.5mm,Edge +/-2.5mm

CTP Controller

FT5446

Power Supply Voltage

3.3V
