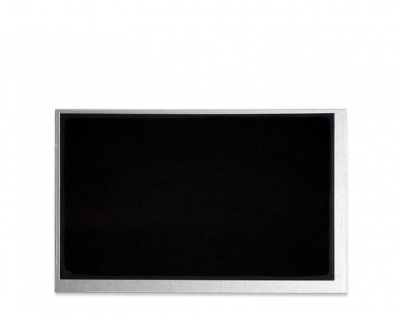

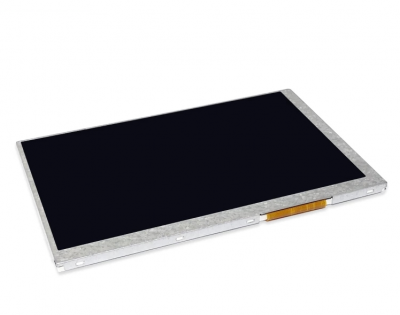

Model : | ZW-T070YWHA-06 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 7.0-inch 800 * 480 TFT LCD module 450nits, 20pins RGB, ultra wide temperature full angle compatible with Mitsubishi Kyocera 7-inch series products as a replacement |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD |
Application : | Industrial, Outdoor High Brightness |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 800×480 |
Aspect Ratio : | 15:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 152.4 (W) × 91.44 (H) mm |
Outline Dimension : | 169.8 (W) × 109.7 (H) mm |
Max. Depth : | 8.9 mm |
TFT Driver IC | HX8290-A-LT,HX8664-B-LT |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 1000nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | ALL O’Clock |
Display Colors : | 16.7M |
Backlight | WLED |
Interface： | LVDS |
Interface Pins : | 20Pins |
Touch Panel : | Without |
Surface treatment | Anti-Glare and hard-coating 3H |
Operating Temp. : | -30~+80°C |
Storage Temp. : | -30~+80°C |
