Model : | ZW-T070BYIA-02CP |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 7.0-inch 800 * 1280 TFT LCD module 300nits, 41pinsMIPI, wide temperature built-in IIC interface capacitive touch screen |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, IPS LCD |
Application : | Pad & Tablet |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 800×1280 |
Aspect Ratio : | 10:16 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 94.2 (W) × 150.72 (H) mm |

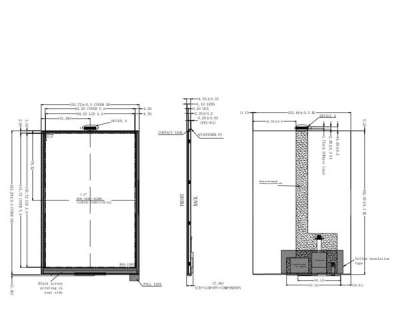

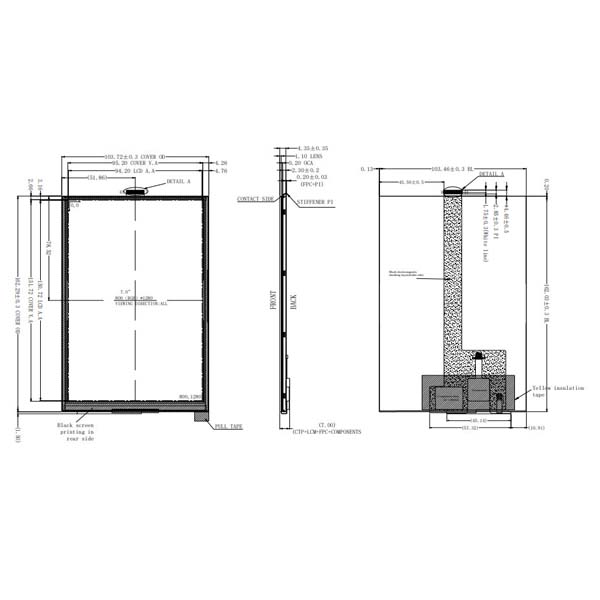

Outline Dimension : | 103.72 (W) × 162.29 (H) mm |
Max. Depth : | 1.1 mm |
TFT Driver IC | ILI9881 |
Power Supply Voltage | 3.3V |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 300nits |
Contrast Ratio : | 1000:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | ALL O’Clock |
Display Colors : | 16.7M |
Backlight | WLED |
Interface： | MIPI |
Interface Pins : | 41Pins |
Touch Panel : | On-Cell Touch |
Operating Temp. : | -20~+60°C |
Storage Temp. : | -30~+70°C |
