Model : | PC070IA83 |
LCD Type | TFT |
Brand : | Xuhong |

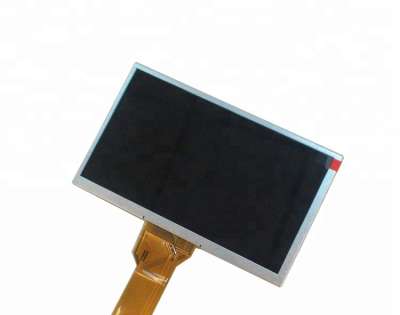

Keywords Desc. | 7.0-inch 800 * 480 TFT LCD module with 500nits, 40pins RGB, compatible with wide viewing angle to replace AT070TN83 V.1 |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Digital Photo Frame, Industrial, MP3 PMP |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 800×480 |
Aspect Ratio : | 15:9 (W:H) |
Form Factor : | Flat Rectangle |

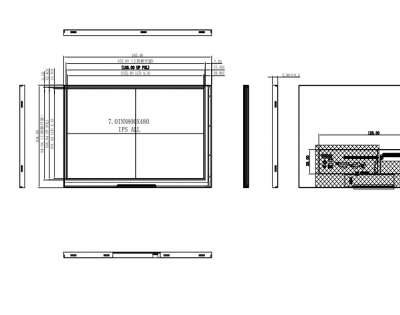

Active Area : | 152.4 (W) × 91.44 (H) mm |
Outline Dimension : | 165 (W) × 104 (H) mm |
Max. Depth : | 5.8mm |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 1000:1 (Typ.) |
Viewing Angle : | 85/85/85/85 (L/R/U/D) |
Viewing Direction | Symmetry |
Display Colors : | 16.7M |
Backlight | WLED |
Interface： | TTL |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
