Model : | XH-T070SWH-02P |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 7-inch 800 * 480 TFT LCD module 400nits, 40pins RGB, wide temperature, with touch screen |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Portable DVD Player, Video Door Phone, VOIP Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 800×480 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 154.08 (W) × 85.92 (H) mm |

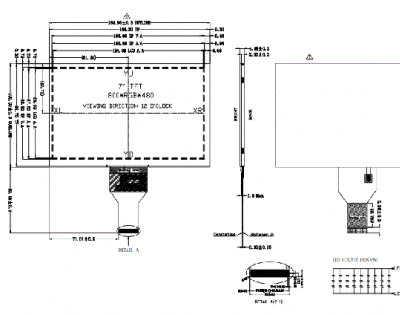

Outline Dimension : | 165 (W) × 100 (H) mm |
Max. Depth : | 4.45 mm |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 400nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 65/65/65/55 (L/R/U/D) |
Viewing Direction | 12o'clock |
Display Colors : | 16.7M |
Backlight | WLED |
Interface： | TTL |
Interface Pins : | 40Pins |
Touch Panel : | On-Cell Touch |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
