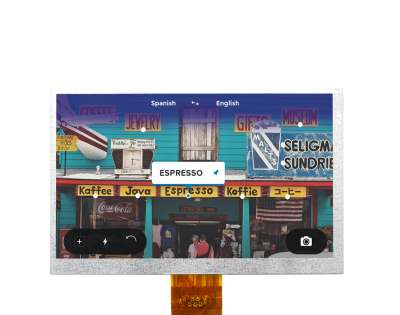

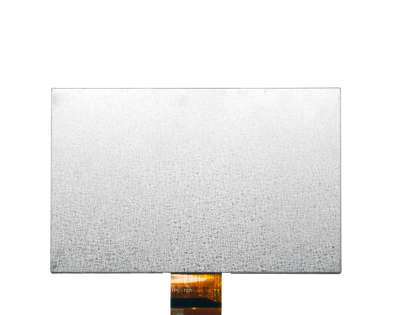

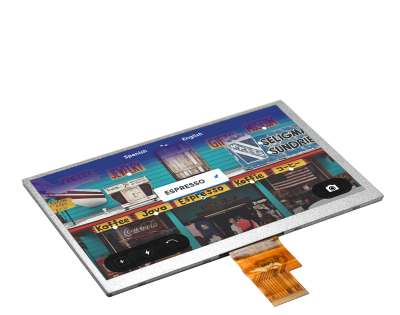

Model : | XH-T070QAH-09 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 7.0inch, 1024*600, 500nits, LVDS, 40pins, TN LCD MODULE |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD |
Application : | Automotive Display, Industrial |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 1024×600 |
Aspect Ratio : | 17:10 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 153.6 (W) × 90 (H) mm |
Outline Dimension : | 165.75 (W) × 105.39 (H) mm |
Max. Depth : | 2.9 mm |
Power Supply Voltage | 3.3V |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 500nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 65/65/65/55 (L/R/U/D) |
Viewing Direction | 12o'clock |
Gray scale inversion direction | 6o'clock |
Display Colors : | 16.7M |
Backlight | 3X10-LEDS (white) |
Interface： | LVDS |
Interface Pins : | 40Pins |
Touch Panel : | Without |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
