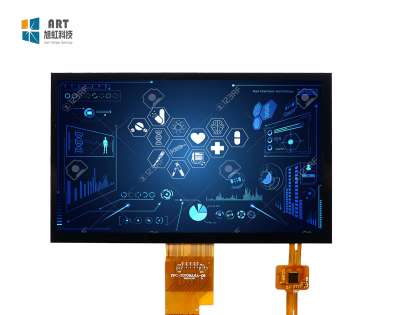

  • XH-T070BAHA-07 7inch, 1024*600, 250nits, 50pins, TTL I/F
  • Model:XH-T070BAHA-07
  • Brand:Xuhong
  • Size:7.0inch
  • Resolution:1024*600
  • Brightness:250cd/m²
  • Perspective:80/80/80/80
  • Interface:TTL
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • Model :

    XH-T070BAHA-07

    LCD Type

    TFT

    Brand :

    Xuhong

    Keywords Desc.

    7inch, 1024*600, 250nits, 50pins, TTL I/F

    Product Class :

    Graphic Display

    Product Tags :

    Color TFT-LCD, Wide Temperature   LCD, IPS LCD

    Application :

    Portable DVD Player, Video Door Phone,   VOIP Phone

    Panel Type :

    a-Si TFT-LCD

    Panel Composition :

    LCM

    Panel Size :

    7"

    Resolution :

    1024×600

    Aspect Ratio :

    16:9 (W:H)

    Form Factor :

    Flat Rectangle

    Active Area :

    154.21 (W) × 85.92 (H) mm

    Outline Dimension :

    165 (W) × 100 (H) mm

    Max. Depth :

    2.95 mm

    Power Supply Voltage

    3.3V

    LC Family :

    IPS

    Polarizer :

    Transmissive

    Brightness :

    250nits

    Contrast Ratio :

    800:1 (Typ.)

    Viewing Angle :

    80/80/80/80 (L/R/U/D)

    Viewing Direction

    Symmetry

    Display Colors :

    16.7M

    Backlight

    3S7P-LEDs (white)

    Interface:

    TTL

    Interface Pins :

    50Pins

    Touch Panel :

    Without

    Operating Temp. :

    -20~+70°C

    Storage Temp. :

    -30~+80°C
