Model : | PC070IA15-B27 |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 7.0-inch 1024 * 600 TFT LCD module 350nits, 40 pins HDMI full view -20~70, driver IC, FPC, abacklightandCTP unit |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Capacitive Touch LCD, IPS LCD |
Application : | Automotive Display |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 1024×600 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |

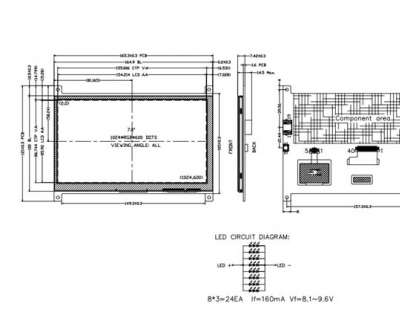

Active Area : | 154.21 (W) × 85.92 (H) mm |
Outline Dimension : | 165.3 (W) × 121 (H) mm |
Max. Depth : | 7.42 mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 350nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | HDMI |
Interface Pins : | 19Pins |
Touch Panel : | PCAP |
Operating Temp. : | -20~+70°C |
Storage Temp. : | -30~+80°C |
