Model : | PC070TN98-LC |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | Cheap price7.0-inch 800 * 480 TFT LCD module with800nits, 50pins RGB, IPS High brightness LCD screen |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD |
Application : | Portable Navigation, Video Door Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 800×480 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 154.08 (W) × 85.92 (H) mm |

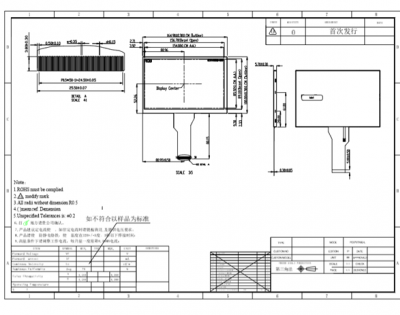

Outline Dimension : | 165 (W) × 100 (H) mm |
Max. Depth : | 5.7 mm |
LC Family : | TN |
Polarizer : | Transmissive |
Brightness : | 800nits |
Contrast Ratio : | 500:1 (Typ.) |
Viewing Angle : | 70/70/50/70 (L/R/U/D) |
Viewing Direction | 6 o'clock |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | TTL |
Interface Pins : | 50Pins |
Touch Panel : | Without |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30 ~ 80 °C |
