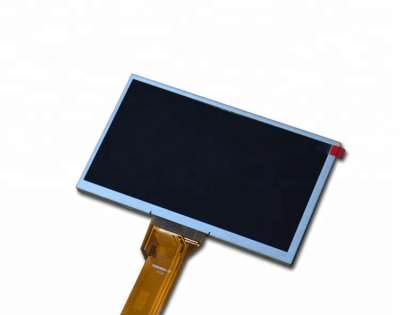

  • PC070TN43 7inch800*480 TFT LCD, 300nits , 40pins RGB
  • Model:PC070TN43
  • Brand:Xuhong
  • Size:7.0inch
  • Resolution:800*480
  • Brightness:300cd/m2
  • Perspective:70/70/50/70
  • Interface:TTL
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • Model :

     PC070TN43

    LCD Type

    TFT

    Brand :

    Xuhong

    Keywords Desc.

    7inch800*480 TFT LCD, 300nits , 40pins   RGB

    Product Class :

    Graphic Display

    Product Tags :

    Color TFT-LCD, Wide Temperature LCD

    Application :

    Automotive Display

    Panel Type :

    a-Si TFT-LCD

    Panel Composition :

    LCM

    Panel Size :

    7"

    Resolution :

    800×480

    Aspect Ratio :

    16:9 (W:H)

    Form Factor :

    Flat Rectangle

    Active Area :

    154.08 (W) × 85.92 (H) mm

    Outline Dimension :

    165 (W) × 100 (H) mm

    Max. Depth :

    5.55mm

    LC Family :

    TN

    Polarizer :

    Transmissive

    Brightness :

    300nits

    Contrast Ratio :

    500:1 (Typ.)

    Viewing Angle :

    70/70/50/70 (L/R/U/D)

    Viewing Direction

    6 o'clock

    Backlight

    WLED

    Display Colors :

    16.7M

    Interface:

    TTL

    Interface Pins :

    40Pins

    Touch Panel :

    Without

    Operating Temp. :

    -20 ~ 70 °C

    Storage Temp. :

    -20 ~ 70 °C
