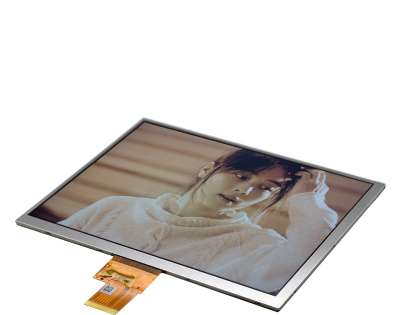

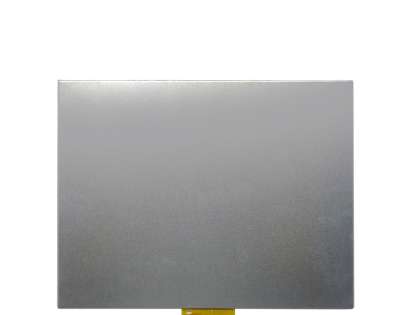

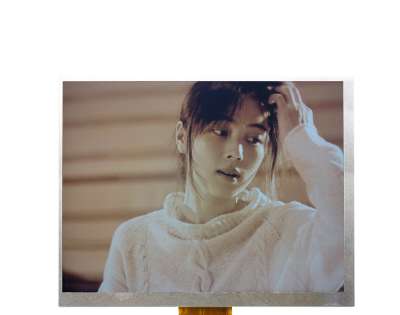

Model : | XH-T070CAH-04CP |
LCD Type | TFT |
Brand : | Xuhong |
Keywords Desc. | 7.0inch with CTP TOUCH 1024*600 400nits 40pins LVDS, HX8282A11/HX8696A01 |
Product Class : | Graphic Display |
Product Tags : | Color TFT-LCD, Wide Temperature LCD, Capacitive Touch LCD, IPS LCD |
Application : | Digital Photo Frame, Video Door Phone, VOIP Phone |
Panel Type : | a-Si TFT-LCD |
Panel Composition : | LCM |
Panel Size : | 7" |
Resolution : | 1024×600 |
Aspect Ratio : | 16:9 (W:H) |
Form Factor : | Flat Rectangle |
Active Area : | 154.21 (W) × 85.92 (H) mm |
Outline Dimension : | 175.8 (W) × 109.24 (H) mm |
Max. Depth : | 7.28mm |
LC Family : | IPS |
Polarizer : | Transmissive |
Brightness : | 400nits |
Contrast Ratio : | 800:1 (Typ.) |
Viewing Angle : | 80/80/80/80 (L/R/U/D) |
Viewing Direction | Symmetry |
Backlight | WLED |
Display Colors : | 16.7M |
Interface： | LVDS |
Interface Pins : | 40Pins |
Touch Panel : | PCAP |
Operating Temp. : | -20 ~ 70 °C |
Storage Temp. : | -30 ~ 80 °C |
